OPTIMUM PERFORMANCE, STRESS-FREE

The standard transmission fitted to all Stralis models is the ZF Eurotronic II automated gearbox, available in 12 or 16-speed configuration. Designed for optimum performance and superior fuel economy, the intelligent and adaptive controls let you keep your focus where it needs to be – on the road.

Both configurations feature electronically-controlled clutch engagement. In automated mode, the Eurotronic transmission automatically selects the ideal gearshift based on factors like load, road speed and road incline. Want to select the gear yourself? Simply pull up or down on the lever and the manual override mode engages.

DELIVERS EVERY TIME

The Stralis ATi is ideal for metro, urban and intrastate delivery work. Available as a rigid or prime mover, the ATi offers axle configurations of 4x2, 6x2 or 6x4 plus engine power ratings of 360 or 460 hp. The flexibility doesn’t end there, with the choice of an 8 or 10 litre engine, four wheelbase options and three rear axle ratio choices.

The Stralis ATi is ideal for local or intrastate distribution and single trailer prime movers.

Stralis ATi Quick Specs

STRALIS ATI QUICK SPECS

MODEL ATI 360 4X2 RIGID ATI 360 6X2 RIGID ATI 450 4X2 PRIME MOVER ATI 450 6X4 PRIME MOVER
CAB Active Time Sleeper Cab Active Time Sleeper Cab Active Time Sleeper Cab Active Time Sleeper Cab
WHEELBASE / AF

6.70M / 3.40M

6.398M / 3.13M

3.65M / 1.048M

3.9M / 1.4M

ENGINE Cursor 8 litre Euro 5 Cursor 8 litre Euro 5 Cursor 10 litre Euro 5 Cursor 10 litre Euro 5
POWER / TORQUE

360HP

1110 LB/FT

360HP

1110 LB/FT

460HP

1550 LB/FT

460HP

1550 LB/FT

TRANSMISSION ZF EuroTronic 12 Speed automated ZF EuroTronic 12 Speed automated ZF EuroTronic 12 Speed automated ZF EuroTronic 12 Speed automated
REAR AXLE RATIO 3.36 : 1 3.36 : 1
3.08 : 1
3.09 : 1
SUSPENSION

Front: Parabolic springs

Rear: IVECO 4 bag ECAS

Front: Parabolic springs

Rear: IVECO 4 bag + 4 bag for tag axle

Front: Parabolic springs

Rear: IVECO 4 bag

Front: Parabolic springs

Rear: IVECO 8 bag ECAS

GVM / GCM Up to 17.1 tonnes / Up to 36 tonnes Up to 25 tonnes / Up to 40 tonnes Up to 17.1 tonnes / Up to 44 tonnes Up to 25.1 tonnes / Up to 50 tonnes
FUEL TANKS Single 400L rectangular alloy Single 400L rectangular alloy Single 600L rectangular alloy Single 600L rectangular alloy
ADBLUE 1x55L 1x55L
1x55L
1x55L

POWER, RELIABILITY AND OUTSTANDING FUEL ECONOMY

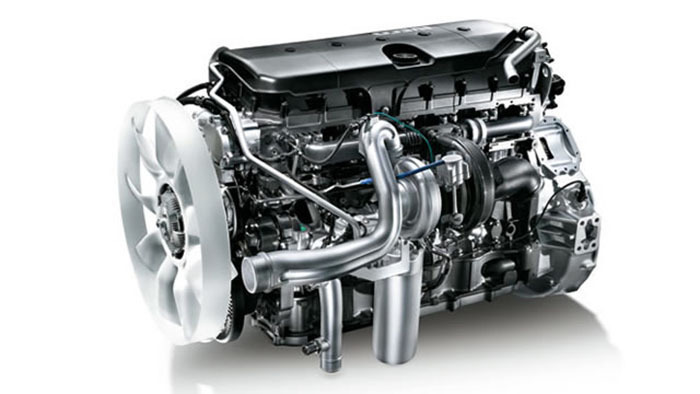

Standard in all Stralis trucks, the IVECO Cursor engine has an in-line 6 cylinder configuration with overhead camshafts delivering power, reliability and outstanding fuel economy. The range includes engines with 8, 10 or 13 litre capacity covering power ranges from 360 hp to 560 hp and up to 1696 lb/ft of torque.

The 13-litre Cursor Series II features a flat torque curve that delivers maximum torque from a low 1,000 rpm all the way through to 1,700rpm, providing stress-free power delivery.

The engine variant specifications are:

  • Cursor 8: 360 hp and 1110 lb/ft
  • Cursor 10: 460 hp and 1550 lb/ft
  • Cursor 13: 450 hp and 1622 lb/ft
  • Cursor 13: 500 hp and 1696 lb/ft
  • Cursor 13: 560 hp and 1696 lb/ft

STRALIS ENGINE QUICK SPECS

ENGINE POWER (HP) TORQUE (LB/FT)
CURSOR 8 360 1110
CURSOR 10 460 1550
CURSOR 13 450 1622
CURSOR 13 500 1696
CURSOR 13 560 1696

YOU'RE SPOILT FOR CHOICE WITH STRALIS

Whatever the demands of your job, there’s a Stralis built for it with 13 variants available across Prime Mover and Rigid truck applications. Special requirements? IVECO lets you customise with the choice of hundreds of specification variations including wheelbase, axle, engine and cab options. It’s how IVECO delivers greater productivity and results for your bottom line.

Stralis model variants comprise:

  • AD/AT – prime mover 6x4 450 hp or 500 hp
  • AD/AT – rigid 6x4 450 hp or 500 hp; 8x4 450 hp or 500 hp
  • AS-L - prime mover 6x4 500 hp or 560 hp
  • ATI - prime mover 4x2 360 hp or 460 hp; 6x4 460 hp
  • ATI – rigid 4x2 360 hp; 6x2 360 hp

FLAGSHIP AND WORK HORSE

IVECO’s flagship Stralis model, the AS-L is designed for the long haul with a cab 2.5 metres wide and 2.2 metres long, giving you plenty of room to move while on the road. Your options include engine power ratings of 500hp or 560hp, torque ratings of up to 1696lb/ft and three rear axle ratio options. The AS-L is built for single trailer, B-Double work, car carriers, and race car or refrigeration transporters.

STRALIS AS-L QUICK SPECS

MODEL AS-L 6X4
CAB Active Space Long: High Roof
WHEELBASE / AF 4.05M / 1.475M
ENGINE Cursor 13 litre Euro 5
POWER / TORQUE 500 or 560 HP / up to 1696 LB/FT
TRANSMISSION ZF EuroTronic II 16 Speed automated
REAR AXLE RATIO 3.40 or 3.78 or 4.125
SUSPENSION

Front: Parabolic leaf springs

Rear: IVECO 8 bag ECAS

GVM / GCM Up to 25.1 tonnes / Up to 90 tonnes
FUEL TANKS 3 tanks with total of 1300L
ADBLUE 1 X 100L

VERSATILE, RELIABLE, READY TO WORK

The Stralis will go anywhere, do anything. With several models assembled locally, the Stralis is uniquely fit to tackle Australia’s tough conditions – city-wide, interstate, anywhere you need to go. The Cursor Series II engine in our top-of-the-line AS-L model delivers IVECO’s famous unbeatable reliability and engine life. Proof? We’ve backed it with extended warranty packages of three, four and five years.

Weighing in with GCMs ranging from 36 to 90 tonnes, the Stralis is built for such applications as prime mover single trailers, B-Double applications, tankers, car and refrigerated transport.

SHORT, MEDIUM OR LONG HAUL? YOU'RE COMFORTABLY COVERED.

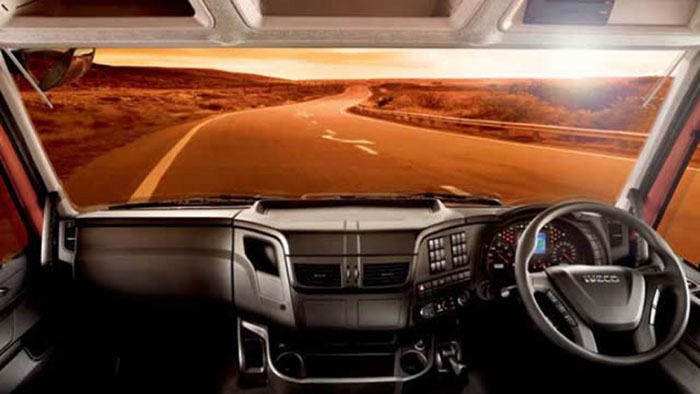

No matter which Stralis you’re driving, rest assured your comfort is covered. The Stralis is available in three cab variations, all offering as standard ISRI 3-way fully adjustable air suspended driver’s seat, a fully adjustable steering column, multiple storage compartments, ergonomic grab handles and a multifunction screen displaying fuel consumption, trip monitoring and vehicle performance.

The three Stralis cab options comprise:

  • Active Day (AD): Built for short haul metro jobs and available as a Prime Mover or Rigid, the AD cab combines comfort and functionality. Your safety is our priority with features like two non-slip steps and grab handles for safe, easy access.
  • Active Time (AT): Designed for medium to long haul jobs and available as a Prime Mover or Rigid, and with the option of standard or high roof. Your comfort is ensured with a two metre long sleeper bunk and privacy curtains.
  • Active Space Long (AS-L): Our flagship cab suited for long haul jobs, the AS-L has all the standard Stralis features plus extra room to move via its 2.5 metre wide and 2.2 metre long dimensions.

WITH STRALIS AD/AT, YOU'RE IN THE DRIVER'S SEAT

Available as a rigid or prime mover, sleeper or day cab and in 6x4 or 8x4 axle configuration, this is one versatile Stralis – and your options don’t stop there. Stralis AD/AT offers engine power ratings of 450hp or 500 hp, five wheelbase options and five rear axle ratio options. The Stralis AD/AT is ideal for single trailer prime movers, pocket B-Double work, tautliners, hook lifts and tankers.

STRALIS AD/AT QUICK SPECS

MODEL AT450/500 6X4 AT450/500 8X4 AD450/500 6X4 AD450/500 8X4
CAB Active Time Sleeper: Low or High Roof Active Time Sleeper: Low or High Roof Active Day Cab: Low Roof Active Day Cab: Low Roof
WHEELBASE / AF

3.9M / 1.475M or

6.2M / 3.4M

5.5M / 1.8M or

6.0M / 3.6M or

6.8M / 2.856M

3.9M / 1.475M or

6.2M / 3.4M

5.5M / 1.8M or

6.0M / 3.6M or

6.8M / 2.856M

ENGINE Cursor 13 Litre Enro 5 Cursor 13 Litre Enro 5 Cursor 13 Litre Enro 5 Cursor 13 Litre Enro 5
POWER / TORQUE

450 or 500HP / 1622 or 1696 LB/FT

450 or 500HP / 1622 or 1696 LB/FT

450 or 500HP / 1622 or 1696 LB/FT

450 or 500HP / 1622 or 1696 LB/FT

TRANSMISSION

ZF Eurotronic II 16 Speed automated

ZF Eurotronic II 16 Speed automated

ZF Eurotronic II 16 Speed automated

ZF Eurotronic II 16 Speed automated

REAR AXLE RATIO 3.40 : 1 or 3.78 : 1 3.58 : 1 or 3.73 : 1 3.40 : 1 or 3.78 : 1 3.58 : 1 or 3.73 : 1
SUSPENSION

Front: Parabolic springs

Rear: IVECO 8 bag ECAS

Front: Parabolic springs

Rear: Hendrickson Primaax PAX-460

Front: Parabolic springs

Rear: IVECO 8 bag ECAS

Front: Parabolic springs

Rear: Hendrickson Primaax PAX-460

GVM / GCM Up to 25.1 tonnes / Up to 75 tonnes Up to 31.1 tonnes / Up to 75 tonnes Up to 25.1 tonnes / Up to 75 tonnes Up to 31.1 tonnes / Up to 75 tonnes
FUEL TANKS

1X500L square or

1x640L & 1x310L

1x500L square

1X500L square or

1x500L & 1x310L

1x500L square
ADBLUE 1x100L 1x55L or 1x100L
1x55L
1x55L or 1x100L
